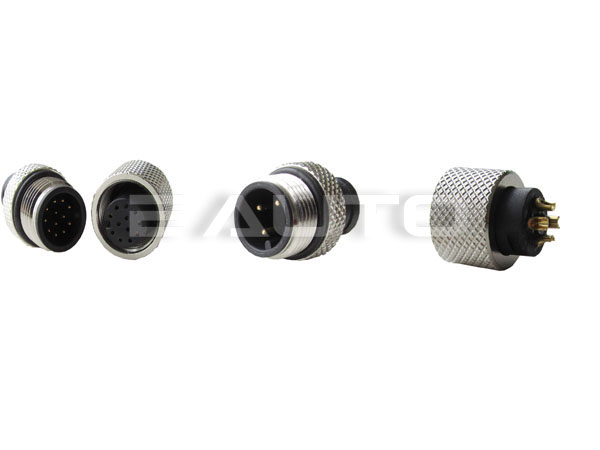

m12 molding connector
Description
Item name:m12 molding connector
Number of contacts:3,4,5,8,12
Connector locking system:screw
Termination:solder
Degree of protection:IP67
Mechanical operation:>100 mating cycles
Upper temperature:+80℃
Lower temperature:-25℃
Rated voltage:250V,250V,125V,60V,30V
Rated current:4A,4A,4A,2A,1.5A
Rated impulse voltage:2500V,2500V,1500V,800V,500V
Pollution degree:3
Contact resistance:≤3mΩ
Material of contact:brass
Contact plating material:gold
Material of contact body:PA
Material of housing:brass nickel plated
M12 series connector are widely used in the industrial instrumentation,factory automation,process control,commercial electronics,ethernet etc field.It is with A-coded,B-coded and D-coded.
