m12 pcb connector
Description

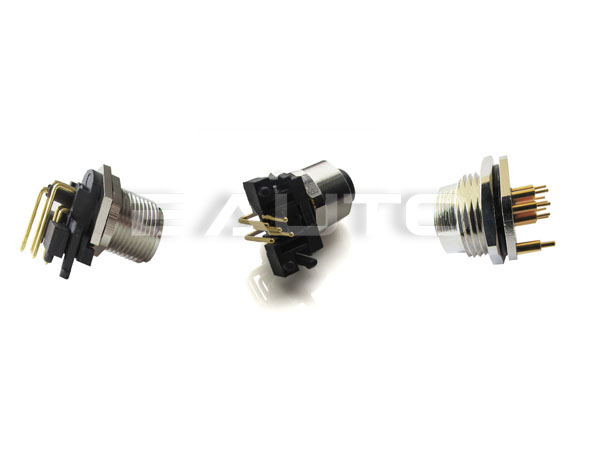

Item name:m12 pcb 90 degree connector
Number of contacts:3,4,5,8
Connector locking system:screw
Termination:solder,pcb
Degree of protection:IP67
Mechanical operation:>100 mating cycles
Upper temperature:+80℃
Lower temperature:-25℃
Rated voltage:250V,250V,125V,60V
Rated current:4A,4A,4A,2A,
Rated impulse voltage:2500V,2500V,1500V,800V
Pollution degree:3
Contact resistance:≤3mΩ
Material of contact:brass
Contact plating material:gold
Material of contact body:PA
Material of housing:brass nickel plated
M12 series connector are widely used in the industrial instrumentation,factory automation,process control,commercial electronics,ethernet etc field.It is with A-coded,B-coded and D-coded.
