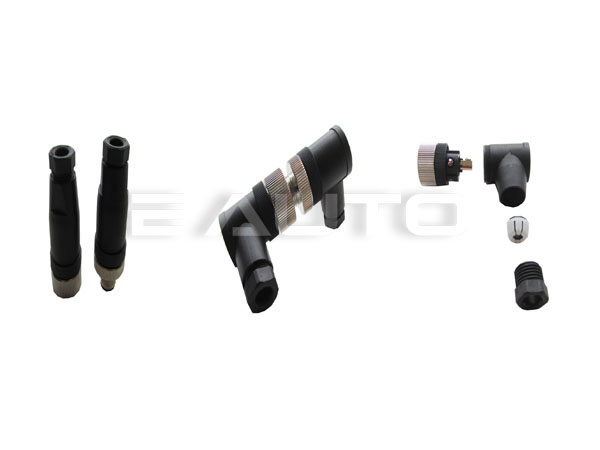

m12 plastic connector

Description

Item name:m12 plastic connector

Number of contacts:3,4,5,8

Connector locking system:screw

Termination:screw

Degree of protection:IP67

Mechanical operation:>100 mating cycles

Upper temperature:+80℃

Lower temperature:-25℃

Rated voltage:250V,250V,125V,60V

Rated current:4A,4A,4A,2A,

Rated impulse voltage:2500V,2500V,1500V,800V

Pollution degree:3

Contact resistance:≤3mΩ

Material of contact:brass

Contact plating material:gold

Material of contact body:PA

Material of housing:brass nickel plated,plastic

M12 series connector are widely used in the industrial instrumentation,factory automation,process control,commercial electronics,ethernet etc field.It is with  A-coded,B-coded and D-coded.
