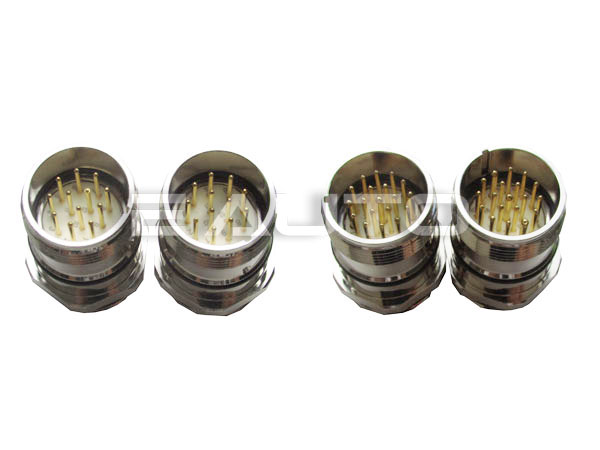

m23 connector

Description

Item name:m23 connector

Number of contacts:6,9,12,16,19

Connector locking system:screw

Termination:solder,pcb

Degree of protection:IP67

Mechanical operation:>500 mating cycles

Upper temperature:+125℃

Lower temperature:-25℃

Rated voltage:300V

Rated impulse voltage:2500V

Contact resistance:≤3mΩ

Material of contact:Brass

Contact plating:Gold

Material of contact body:PBT/PA66

Material of housing:Brass nickel plated
