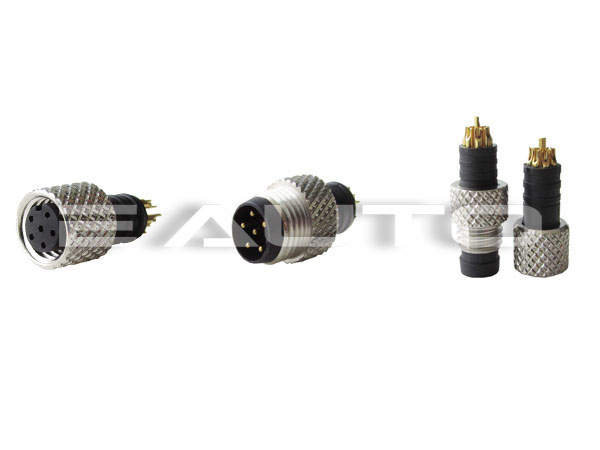

m8 molding connector

Description

Item name:  M8 molding connector

Number of contacts: 3,4,6,8

Connector locking system:screw

Termination:solder

Wire guage:AWG26/AWG24

Degree of protection:IP67

Mechanical operation:>100 mating cycles

Upper temperature:+80℃

Lower temperature:-25℃

Rated voltage:60V,30V,30V,30V

Rated current:4A,4A,1.5A,1.5A

Rated impulse voltage:800V

Pollution degree:3

Contact resistance:≤3mΩ

Material of contact:Brass

Contact plating:Gold

Material of contact body:PA

Material of housing:Brass nickel plated

Metric M8 connectors are for small sensors and actuators.The waterproof rating is IP67,these are ideally suited for industrial control networks where small sensors are required.
